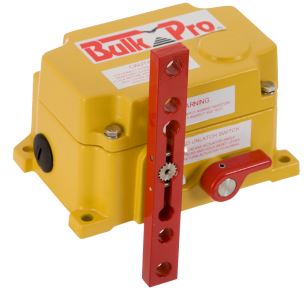

SS-2C Pull Cord Switch is a conveyor safety accessory designed to interlock with the conveyor shut down systems in the event of maintenance or an emergency. When force is applied to the cable on either side of the switch the actuator arm rotates and locks in the alarm position. This activates two (2) micro switches and the manual lock out. Once the maintenance is done or the emergency is cleared the switch can be reset by pressing down and releasing the manual reset lever. Model SS-2C Pull Cord Switches are typically mounted on the walkway side of the conveyor or in situations where the conveyor is accessible from the ground. The SS-2C has CE agency approval. |
SS-3 Pull Cord Switch is a conveyor safety accessory designed to interlock with the conveyor shut down systems in the event of maintenance or an emergency. When force is applied to the cable on either side of the switch the actuator arm rotates and locks in the alarm position. Activates two micro switches and the manual lock out. Once maintenance is done or the emergency is cleared the switch can be reset by pressing down and releasing manual reset lever. SS-3 Pull Cord Switches are typically mounted on the walkway side of conveyor or in situations where the conveyor is accessible from the ground. SS-3 Pull Cord Switch can be ordered in CSA approved versions. CSA version is approved for Class II, Div. 1 & 2, Groups E, F & G. |
BM-2C Belt Misalignment switches are conveyor safety accessories designed to interlock with the conveyor shut down systems in the event of conveyor belt misalignment. Mounted in pairs, one on each side of the belt with the roller actuator arms positioned approximately one inch from each side of the belt. In the event where the conveyor belt tracks off the idlers in either direction, it will cause the roller actuator arm to move, tripping one or both micro switches. Two independent micro switches inside the enclosure, one for alarm annunciation (set at 10 degrees) and the other for shut down (set at 20 degrees) from the original position. This simple system will protect conveyor belts from costly repairs and downtime due to belt misalignment. BM-2C Belt Misalignment Switch has CE agency approval. |
BM-3 Misalignment switches are conveyor safety accessories designed to interlock with the conveyor shut down systems in the event of conveyor belt misalignment. Mounted in pairs, one on each side of the belt with the roller actuator arms positioned approximately one inch from each side of the belt. In the event where the conveyor belt tracks off the idlers in either direction, it will cause the roller actuator arm to move, tripping one or both micro switches. Two independent micro switches inside the enclosure, one for alarm annunciation (set at 10 degrees) and the other for shut down (set at 20 degrees) from the normal position. This simple system will protect conveyor belts from costly repairs and downtime due to belt misalignment. BM-3 Belt Misalignment Switch can be ordered in standard and CSA approved versions. CSA approved version is also approved for Class II, Div. 1 & 2, Groups E, F & G. |
PS-2C Position Switch is utilized to monitor the position of heavy moving machinery. The roller actuator arm on the switch is design to make contact with moving machinery and once it is moved from its normal position two micro switches are tripped. These switches can be used to send an alarm to the control system or operator. It notifies the control system or operator that the machinery has hit its limit of travel so steps can be taken to stop the machinery or start the process. It basically operates as a heavy duty limit switch. For example PS-2C switches can be used to notify the control system or operator of the position of a tripper car, gravity take up or stacker conveyor. The are unlimited possibilities to use this switch in your operation. The PS-2C Position Switch has CE agency approval. |
PS-3 Position Switch is utilized to monitor the position of heavy moving machinery. The roller actuator arm on the switch is design to make contact with moving machinery, and once it is moved from its normal position two micro switches are tripped. Switches can be used to send an alarm to the control system or operator. It notifies the control system or operator that the machinery has hit its limit of travel so steps can be taken to stop the machinery or start the process. It basically operates as a heavy duty limit switch. PS-3 switches can be used to notify the control system or operator of the position of a tripper car, gravity take up or stacker conveyor. There are unlimited possibilities to use this switch in your operation. PS-3 Position Switch can be ordered in standard and CSA approved versions. CSA approved version is also approved for Class II, Div. 1 & 2, Groups E, F & G. |
| |
BD-3 Belt Damage Detector switches are conveyor safety accessories designed to interlock with the conveyor shut down systems in the event of a damaged belt. Mounted in pairs, one on each side of the belt with the cables crossing in the middle. In the event where something is sticking through the belt or a splice has failed, it will come in contact with these cables pulling the ball out of the socket at the switch. This will cause the red actuator arm to displace from its normal position tripping both micro switches inside. One switch for shut down and the other for alarm annunciation. This simple system will protect conveyor belts from costly repairs and downtime due to belt damage. BD-3 Belt Damage Detector can be ordered in standard, CE and CSA approved versions. CSA approved version is also approved for Class II, Div. 1 & 2, Groups E, F & G. |
|
