| RANGER - Sensor to Coud Platform |
RANGER - Wall Mount |
DIN RANGER |

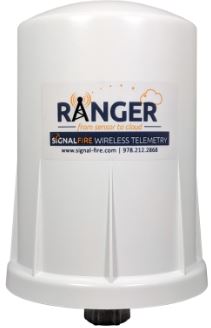

RANGER provides Plug-&-Play instant connectivity of a sensor to the cloud over cellular networks and is optimized for battery life using latest cell modem technology. Multi input / output to connect to a variety of sensors including analog, Hart, SDI-12 and Modbus. SignalFire cloud monitoring / alarm service and powers sensors from battery or external solar.
|

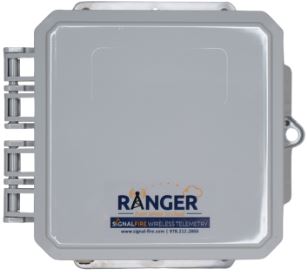

The RANGER Wall Mount supports all of the same options and features of the standard RANGER but housed in an IP68 rated enclosure. The Wall Mount features 2 cord grips for cable entry along with a third PG9 plug that can be replaced with a cord grip for additional I/O. The Wall Mount is perfect for applications requiring an IP68 rating or for those where this form factor provides more convenient mounting options. |

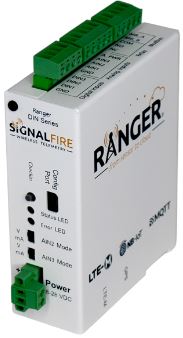

DIN RANGER sensor-to-cloud family of cellular transmitters. Primary use is to integrate with Modbus RTU devices offering bi-directional connectivity over cell networks (LTE-M or NB-IoT). Modbus registers are converted into MQTT/SparkPlugB messages allowing for plug-and-play use with the SignalFire Cloud web application or other hosts. DIN form factor makes it convenient to be fitted inside of a panel requirng less than 2.5mA of external DC power. The RS485 Modbus port also offers 3 digital inputs (dry contact or pulse measuring), 3 analog inputs and 1 relay output. |
|
|
 |
| Ranger 900 |
SignalFire Cloud |
Sentinel Solar System |
The Ranger900 combines the best of both worlds – 900 MHz and cellular into one user friendly industrial package. This solution reduces the customers overall cellular and monthly cost by integrating SignalFire’s 900 MHz network with the Ranger platform. With this solution, only one Ranger Cloud and SIM Card subscription is necessary to accommodate up to 32 SignalFire 900 MHz nodes (32 total read / write registers). The number of nodes depends on the quantity of measurements per node. For example, if a Sentinel is measuring level and battery voltage, the number of total Sentinels would be 16 because each are using 2 registers from the available 32. |

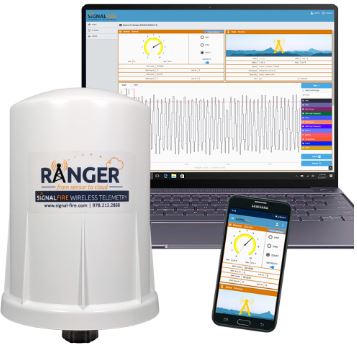

SignalFire Cloud equipped with the RANGER is the easiest and most user-friendly platform to monitor your assets without being a computer expert. We have redefined the plug-and-play experience from sensor to cloud. There is no programming necessary to connect & retrieve the data from a RANGER. From the web application, simply claim the RANGER to your account using the serial number and your device will immediately show up on your personal dashboard. From there you can configure your measurements, alarms, SMS messages, and dashboards. You can also assign widgets to measurements, automate reports, and assign users to receive alarms based on the criteria you set. |

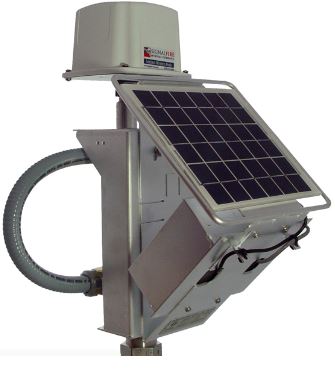

SignalFire C1D1 Solar System is an Intrinsically Safe device with features such as Complete battery and solar charging system; Integrated mounting bracket for mounting on a horizontal or vertical pole; High efficiency solar charging circuit; Fully encapsulated battery pack and charging circuit; and Optional bracket kits for mounting the solar system with the Sentinel
|
 |
|
