| CONVEYOR SAFETY SWITCHES |
POINT LEVEL DETECTION |
SPEED SWITCHES & MONITORS |

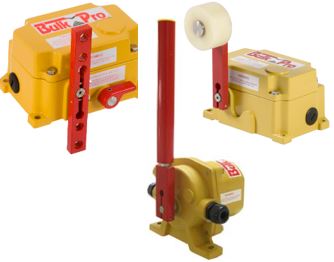

Bulk Pro Systems Conveyors Switches are process instruments that are designed to protect the conveyor belt from damage or operators in the case of an emergency. Bulk Pro Systems carries a complete line of conveyor switches consisting of Pull Cord Switches, Belt Misalignment Switches, Position Switches and Belt Damage Detectors. We have models that have the CE, CSA and Hazardous location approvals. All of Bulk Pro Systems Conveyor Switches are built for the most rugged industrial applications with die cast aluminum enclosures, 304 stainless steel shafts and a baked on yellow epoxy based urethane finish. These switches are currently being used on conveyors all over the world. Bulk Pro Systems Conveyor Switches will allow you to quickly shut down a conveyor belt, protect you from costly repairs and give you peace of mind. |
SL20-8 and SL29-115 Tilt Switch Probe & Control provide simple alarm output for both dry bulk materials or liquids when used with a float ball accessory. The rugged non-mercury probe is suspended vertically over a material pile, bin or conveyor belt and as the material level rises to tilt the switch approximately 15° from vertical in any direction, an alarm output signal is activated. The control unit is designed with an adjustable time delay to prevent false trips from vibration, wind or accidental movement. This tilt switch control and probe are typically used as high level detection in conveyor transfer chutes, redundant high level detection in silos and hoppers and at the head end of stacker conveyors. The Model SL20-8 and SL29-115 Tilt Switch Probe & Control provide simple and reliable level detection in your most difficult applications. |
Bulk Pro Systems Conveyors Speed Switches are process instruments that are designed to enunciate an alarm when the rotation stops or slows. Bulk Pro Systems carries a complete line of speed switches. They come standard with either a discreet output or 4-20mA linear output or both. We have proximity type speed pick-ups or the most innovative design on the market – magnetically coupled. All of Bulk Pro Systems Conveyor Switches are built for the most rugged industrial applications. These speed switches are currently being used on conveyors all over the world. Choosing the most appropriate speed sensing technology is important. Bulk Pro Systems can recommend the right kind of technology based on the material and the application. |
 |
 |
|
| TRAMP METAL DETECTORS |
CONTINUOUS LEVEL |
|
Tramp Metal Detector is designed to detect both ferrous an non-ferrous metals on a moving conveyor belt. Bulk Pro Systems distributes many different types of metal detectors and will determine which detector is best suited for your application. Tough and reliable, Bulk Pro Systems Tramp Metal Detectors are designed to detect and discriminate between conductive materials and metals, both magnetic and non-magnetic, ferrous and non-ferrous tramp metal. Our detectors are compatible with fabric and steel core belts. They provide protection to downstream processing equipment by detecting the presence of potentially damaging metal objects. Whether you are looking for large or very small pieces of metal, Bulk Pro Systems has a detector to suit your application. |
PLR-100 Insert-A-Cell Continuous Level Detection System is designed to monitor the product level in storage bins, silos and tanks. This unique system measures the strain on the support structure as the weight changes inside. This is done by utilizing small cylindrical strain sensors that are press-fit into the support structure. These sensors, when properly installed in the vessel support structure, accurately measures the force or weight acting on the support beams or columns. When the strain sensors are wired to the PLR-100 indicator and the system is calibrated, it will display the level on the front panel and provide an output for remote monitoring. The PLR-100 Insert-A-Cell system works on most bulk solids application where the material has a consistent bulk density and the weight is in excess of 50 tons. The fact that it is unaffected by rat-holes, bridging and dust will eliminate many of the headaches commonly associated with intrusive type continuous level controls.
|
|
|
|
